Home ProductsSubmersible Sewage PumpDrainage Fecal Sewage Sump Pump , Waste Water Pump For Dirty Water

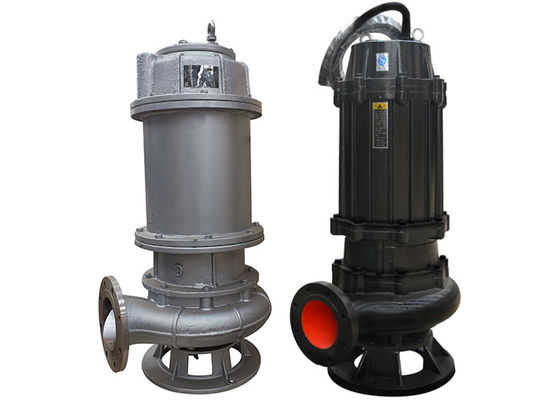

Drainage Fecal Sewage Sump Pump , Waste Water Pump For Dirty Water
Drainage Fecal Sewage Sump Pump , Waste Water Pump For Dirty Water Drainage Fecal Sewage Sump Pump , Waste Water Pump For Dirty Water Drainage Fecal Sewage Sump Pump , Waste Water Pump For Dirty Water Drainage Fecal Sewage Sump Pump , Waste Water Pump For Dirty Water
Contact Now

Drainage Fecal Sewage Sump Pump , Waste Water Pump For Dirty Water

Minimum Order Quantity : 1 piece Price : Please feel free to send an inquiry to us
Packaging Details : Submersible sewage pump with Wooden package or 20'inch container Delivery Time : 2-3 working days after payment confirment
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 8578 pieces per month
Place of Origin: Henan, China Brand Name: APK
Certification: ISO9001;ISO4001;ISO18001;CE,BV; TUV; SABER Model Number: WQ

Detail Information
Flow Rate: 5-3500m3/h Head Rate: 5-200m
Outlet Diameter: 100mm-350mm Motor Power: 0.55kw-220kw
Voltage: 380v/420v/480v Or As Per Request Frequency: AC 3 Phase 50hz/60hz
Material: Cast Iron/Stainless Steel OEM ODM: Accept
Quality Warranty: One Year Or More
Highlight:

submersible sewage water pump

,

submersible dirty water pump

Product Description





Submersible Sewage Pump Overview
  1. Type: WQK cutting sewage pump/WQ-JY automatic mixture sewage pump/WQ non clogging sewage pump/ WQX bottom suction sewage pump/ WQS filled water sewage pump/WQP stainless steel sewage pump
  2. Flow range: 5-3500m3/h
  3. Head range: 5-200m
  4. Motor Power: 2.2kw-410kw
  5. Voltage: 380v/440v/660v or As your request
  6. Frequency: 3 phase 50hz/60hz
  7. Material: Cast iron or stainless steel
Submersible Sewage Pump Applications
  1. Raw water, rain water
  2. Municipal and industrial waste water
  3. Sewage treatment
  4. Construction
  5. Other industrial applications
Submersible Sewage Pump Features
  1. Compact structure, easy to use, easy installation
  2. Specially adopting cyclone type and double flow type impeller, strong pollution discharge capacity.
  3. The motor adopt hard corrosion-resistant single and double end face ceramic seal, good anti leakage effect, the motor running more safe and reliable.



Drainage Fecal Sewage Sump Pump , Waste Water Pump For Dirty Water 0



Drainage Fecal Sewage Sump Pump , Waste Water Pump For Dirty Water 1



Drainage Fecal Sewage Sump Pump , Waste Water Pump For Dirty Water 2



Outlet diameter Model Discharge flow Head Speed Power
mm WQ Series m3/h m r/min kw hp
50 50WQ7-15-1.1 7 15 2900 1.1 1.5
50 50WQ10-15-1.5 10 15 2900 1.5 2
50 50WQ10-22-2.2 10 22 2900 2.2 3
50 50WQ15-20-2.2 15 20 2900 2.2 3
50 50WQ15-25-3 15 25 2900 3 4
50 50WQ15-32-4 15 32 2900 4 5
50 50WQ18-40-5.5 18 40 2900 5.5 7
65 65WQ15-7-1.1 15 7 2900 1.1 1.5
65 65WQ25-7-1.5 25 7 2900 1.5 2
65 65WQ25-10-2.2 25 10 2900 2.2 3
65 65WQ25-20-3 25 20 2900 3 4
65 65WQ25-25-4 25 25 2900 4 5
65 65WQ30-30-5.5 30 30 2900 5.5 7
80 80WQ35-7-2.2 35 7 2900 2.2 3
80 80WQ50-10-3 50 10 2900 3 4
80 80WQ50-13-4 50 13 2900 4 5
80 80WQ40-22-5.5 40 22 2900 5.5 7
80 80WQ45-22-7.5 45 22 2900 7.5 10
100 100WQ50-6-2.2 50 6 2900 2.2 3
100 100WQ60-9-3 60 9 2900 3 4
100 100WQ60-10-4 60 10 2900 4 5
100 100WQ65-15-5.5 65 15 2900 5.5 7
100 100WQ100-10-7.5 100 10 2900 7.5 10
150 150WQ140-7-7.5 140 7 2900 7.5 10



If these submersible sewage pumps meet your requirements, please feel free to send an inquiry, we will send you price and deliver time.
